Full Auto Wire Cutter Stripping Machine / 10 Cable Wire Tinning Machine
| Place of Origin | China |
|---|---|
| Brand Name | AItuo |
| Certification | CE |
| Model Number | AM112 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 15 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5 Sets / Month |
Product Details
| Productivity | 20,000 PCS/Hour | Frequency | 2,000 Times/hour |
|---|---|---|---|
| Max Wire Quantity | 10 Wires One Time (according Actual Size) | Cutting Length | 7.5mm - 1149mm |
| Stripping Length | 0.1mm - 9.9mm | Twisting Length | 3.0mm - 9.9mm |
| Tin Processing Length | 0.1mm - 9.9mm | Weight | 280KGS |
| High Light | induction brazing machine,induction brazing equipment |
||
Product Description

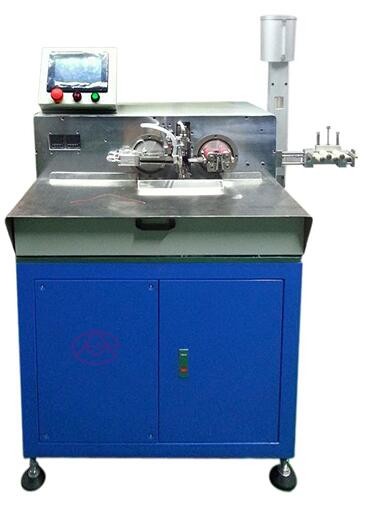

Full Auto Wire Cutter Stripping Machine / 10 Cable Wire Tinning Machine
Features:
1. The main parts are controlled by seven motor driven, which overcome the instability of pneumatic. Comparing with similar products, our machine is more stable, higher productivity, after-sale and maintenance are more convenient and higher efficient.
2. 10 wires installed in place of the machine, which automatically finish cutting, stripping, tinning.
3. High output, it can cut 10 wires at one time, about 20,000 wires per hour.
4. Easy to operate: wire length, stripping length, wetting depth, cutting speed, immersion tin time entirely operated by touch screen.
Technical Parameter:
| Model | AM112 |
| Voltage | AC 220V/50/60HZ Single Phase |
| Function | Cutting( one or both end), stripping, tinning, half-stripping |
|
Productivity 1 |
Frequency: 2,000 times/hour |
| Productivity 2 | Max 10 wires one time (according actual size) |
| Productivity 3 | Productivity:20,000 PCS/Hour |
|
Suitable Wire 1 |
Enameled wire |
| Suitable Wire 2 | Minuteness Teflon Wire |
| Suitable Wire3 | Electronic Wire(AWG34#--AWG20#) |
| Cutting length | 7.5mm - 1149mm |
| Stripping length | 0.1mm - 9.9mm |
| Twisting length | 3.0mm - 9.9mm |
| Tin processing length | 0.1mm - 9.9mm |
| Air pressure | 5KGF (need clean and dry air) |
| Dimension | 600mm*800mm*1100mm |
| Weight | 280KGS |
Shenzhen Aituo Automation Device Co., Ltd is a production-oriented high-tech company, which in the field of automation machine and equipment with strong technological, has a strong research&design team. We have advanced production equipment, professional technical personnel and experienced domestic and foreign sales, and the ISO quality management system.Our productions mainly are wire terminal processing equipment, which includes:Automatic USB soldering machine, automatic wire strip&tin machine, full/semi automatic cable bundling machine, automatic wire stripping cutting machine, automatic teminal crimping machine, gas wire stripping machine, copper strap machine and so on.Especially,automatic USB soldering machine and automatic wire strip&tin machine are our latest research and de
