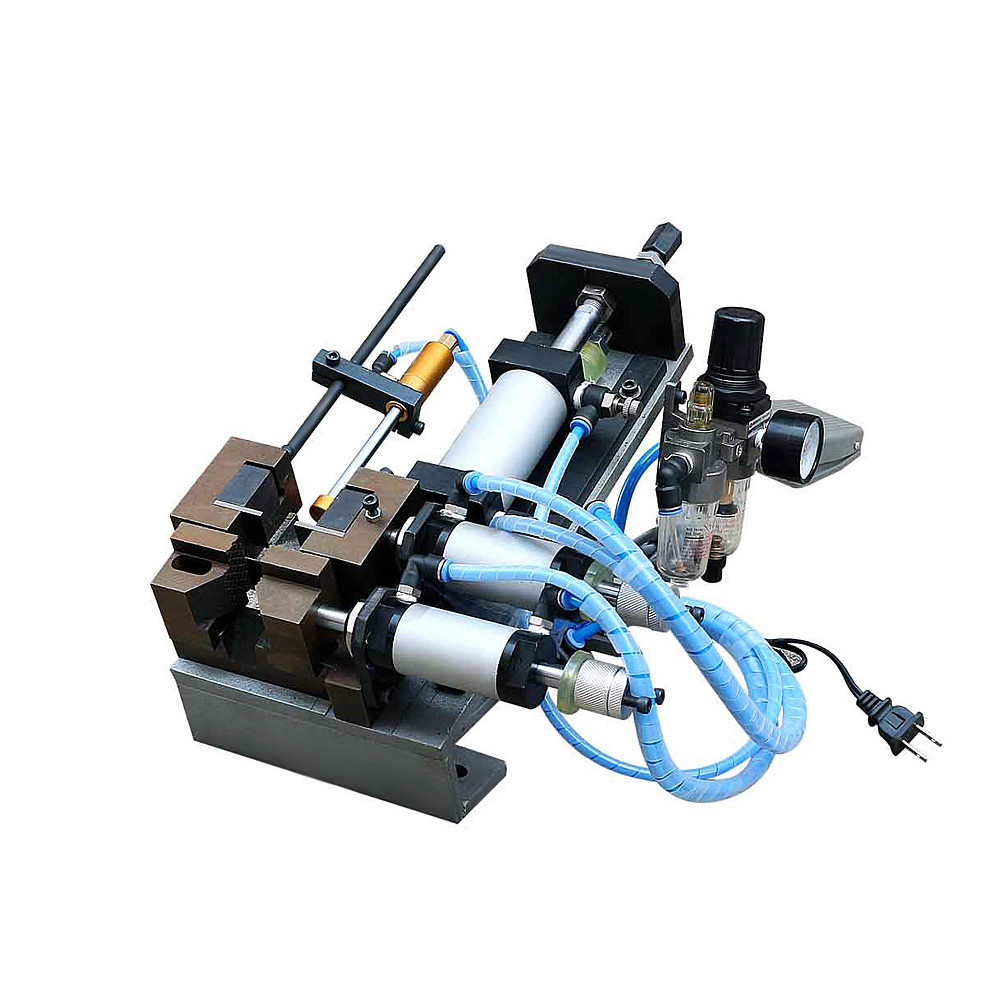

Electric Pneumatic Wire Stripping Machine , Multi Core Wire Stripper Machine
Model | AM405 | Wire Diameter | 1-5mm |
---|---|---|---|
Stripping Length | 3-50mm | Max Power | 37kg |
Weight | 20kg | Dimension | 400*300*270mm |
High Light | wire stripper machine,wire stripping equipment |
Electric Pneumatic Wire Stripping Machine , Multi Core Wire Stripper Machine
Features:
1. Bevel design, according to somatology
2. Dual-driving cylinder, no spring breakage
3. Self-feeding oil and air. Timely feed oil to cylinder can decrease abrasion of
interior cylinder and longer working life.
4. Special sliding holder, stroke front and back stable, and high peeling
precision.
5. Electric and pneumatic control, easy to operate
6. Adjustable structure, it can adjust as the thickness of wire.
7. Suitable for short cable and small diameter wires, such as AC/DC cable,
power wire, computer cable, electric cable and multicore cable,etc.
Model | Wire diameter | Stripping length | Max power | Weight | Dimension |
AM405 | 1-5mm | 3-50mm | 37kg | 20kg | 400*300*270mm |
AM406 | 1-10mm | 3-100mm | 115kg | 25kg | 480*330*280mm |
AM407 | 1-15mm | 3-150mm | 196kg | 35kg | 600*420*360mm |
AM408 | 1-15mm | 3-330mm | 196kg | 65kg | 1100*550*450mm |
AM409 | 1-20mm | 3-400mm | 196kg | 80kg | 1200*550*450mm |
AM410 | 1-20mm | 3-500mm | 196kg | 80kg | 1200*550*450mm |
AM411 | 1-30mm | 3-150mm | 300kg | 50kg | 800*620*550mm |
AM412 | 1-30mm | 3-300mm | 300kg | 80kg | 800*620*550mm |
AM413 | 1-30mm | 3-700mm | 300kg | 150kg | 1800*660*580mm |
AM414 | 1-50mm | 3-200mm | 500kg | 90kg | 900*700*600mm |
AM415 | 1-50mm | 3-500mm | 400kg | 110kg | 1800*660*580mm |
AM416 | 1-50mm | 3-600mm | 500kg | 130kg | 1800*660*580mm |
