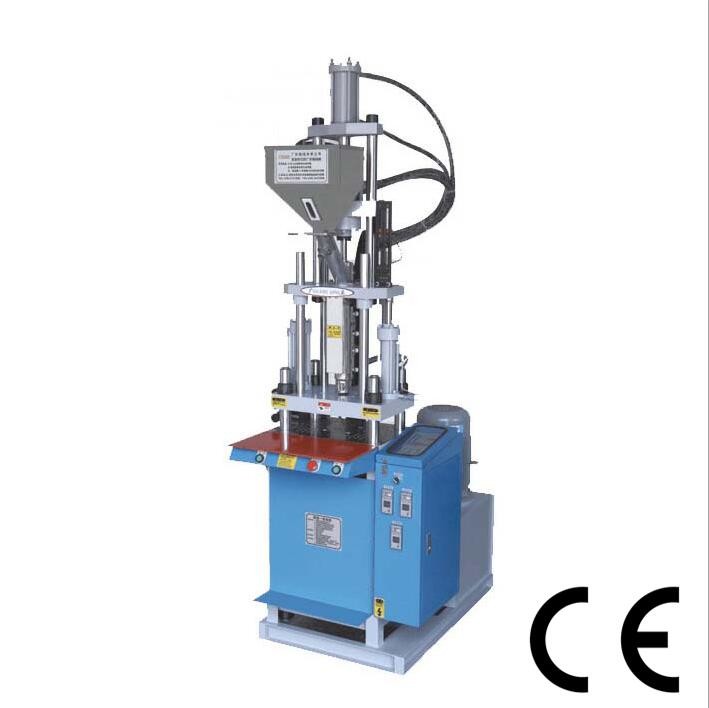

15Tf Clamping Force Vertical Injection Molding Machine With CE Approved
| Place of Origin | GuangDong CHINA |
|---|---|
| Brand Name | AM |
| Certification | CE |
| Model Number | AM701-15T Vertical Injection Molding Machine |
| Minimum Order Quantity | 1Set |
| Price | Negotiation |
| Packaging Details | Export standard wood package,cover wtih steel tie on its surface. |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50Set Per/Month |
Product Details
| Model | AM701-1.5 | Screw Diameter | ¢22/ ¢26 Mm |
|---|---|---|---|
| Injection Capacity | 34/47cm³ | Dimensions | 1400x1200x2250mm |
| Weight | 600kg | Drive Motor | 2.2kw |
| High Light | vertical injection moulding machine,clamping system injection molding machine |
||
Product Description
15Tf Clamping Force Vertical Injection Molding Machine With CE Approved
Features:
1. Stands closes-fires from the prone position four columnsmol series to do in the identical horizontal plane 180° return lathe.But the operator does in the fixed operation surface takes to put inlays,the work convenience also lives the efficiency to be high.
2. The surface localization, by is fixed lives,after may guarantee turns on lathe stops, can have the high accuracy the localization about,takes shape the mold accurately to gather the mold.
3. The aoca from inserts takes out and so onfrom sets,helps all from.
4. The 2 stations,have the special demand to be possible 3 to stand,4 to stand in addition or more stations.to a more convenient operation, and form does delimits,increase energy.
Specification:
| Model | AM701-1.5 Vertical Plastic Injection Molding Machine |
| Screw diameter | Φ22/ Φ26 mm |
| Injection capacity | 34/47 cc |
| Injection weight | 1.4-1.9oz |
| Max.Injection pressure | 1625/1164 MPa |
| Injection rate | 28/39 cc/s |
| Screw stroke | 90mm |
| Screw speed rotation | 0-150r.p.m. |
| Nozzle contact force | 2.4tf |
| Clamping force | 15tf |
| Clamping stroke | 200mm |
| Min.molud space | 240mm |
| Max.mould height | 40mm |
| Hydaullc ejector force | 0.7tf |
| injector stroke | 30mm |
| System pressure | 15MPa |
| Oil tank capacity | 90L |
| Drive motor | 2.2kw |
| Shipment size | 1400x1200x2250mm |
