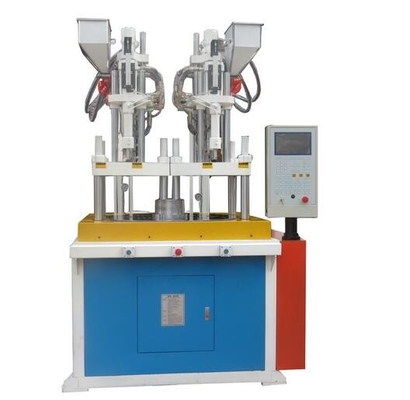

Stationery / Toy Two Color Vertical Injection Moulding Machine 2.8Kw × 2 Heating
| Place of Origin | CHINA |
|---|---|
| Brand Name | AM |
| Certification | CE |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | export standard wooden package |
| Delivery Time | 10-15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets per month |
Product Details
| Weight | 4.2 Tons | Dimension | 2.5*1.9*3.08m |
|---|---|---|---|
| Heating Power | 2.8kw*2 | Motor Power | 5.5/7.5hp *2 |
| Screw Diameter | 30mm 32mm 35mm | Opening Stroke | 200mm |
| High Light | vertical plastic injection moulding machine,vertical injection moulding machine |
||
Product Description
Stationery / Toy Two Color Vertical Injection Moulding Machine 2.8Kw × 2 Heating
Specification:
Injection Unit |
Screw Diameter | mm | 30 32 35 | |
| Injection Pressure | Kg/cm² | 1171 996 810 | ||
Theoretical Shot Volume |
Cm³ | 81 92 110 | ||
Max. Shot Weight(PS) |
g | 74 84 106 | ||
Max. Shot Weight(PS) |
cm2/sec | 62.5 71 95 | ||
| Injection Rate | mm | 115 | ||
| Nozzle Stroke | mm | 190 | ||
Nozzle Contact Force |
tons | 4.45 | ||
| Screw Speed | r.p.m | 0-190 | ||
| Plate Size | mm | 830*400 | ||
| Clamping Force | tons | 45 | ||
Min mold height |
mm | 200/150 | ||
openning stroke |
mm | 200 | ||
| max open daylight | mm | 450/350 | ||
| Ejector force | tons | 1.5 | ||
| Ejector Stroke | mm | 135 | ||
Electrical Equipment&Ceneral |
Oil Caoacity |
l | 180 | |
| Shipping Size | m | 2.6*2*2.3 | ||
| Shipping Weight | tons | 4.5 | ||
Cooling Water Consumption |
L/hr | 600-800 | ||
| Drive Motor | KW/HP | 5.5/7.5*2 | ||
| heater | KW | 18 | ||
| Dimension | m | 2.5*1.9*3.08 | ||
| Weight | tons | 4.2 | ||
OUR COMPANY
Shenzhen Aituo Automation Device Co., Ltd is a production-oriented high-tech company, which in the field of automation machine and equipment with strong technological, has a strong research&design team. We have advanced production equipment, professional technical personnel and experienced domestic and foreign sales, and the ISO quality management system.Our productions mainly are wire terminal processing equipment, which includes: Automatic USB soldering machine, automatic wire strip&tin machine, full/semi automatic cable bundling machine, automatic wire stripping cutting machine, automatic teminal crimping machine, gas wire stripping machine, copper strap machine and so on. Especially, automatic USB soldering machine and automatic wire strip&tin machine are our latest research and development new equipment, which greatly improve production efficiency, and greatly save production cost.
For many years, we adhere to the business philosophy“Quality first, integrity innovation, to meet customer demands”. Our company and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to India, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic, Turkey, Italy and so on.
