automatic advanced usb cable soldering machine china suppliers
| Place of Origin | China guangdong |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM121 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | wooden package |
| Payment Terms | L/C, Western Union |
| Supply Ability | 50sets/month |
Product Details
| Type | Soldering Machine | Voltage | 220V |
|---|---|---|---|
| Welding Angle | 90 Degree | Weight | 180 Kg |
| Packing | Wooden Case | Productivity | 700-1200pcs/h |
| Delivery Time | 7 Working Days | Payment Method | TT/Paypal |
Product Description

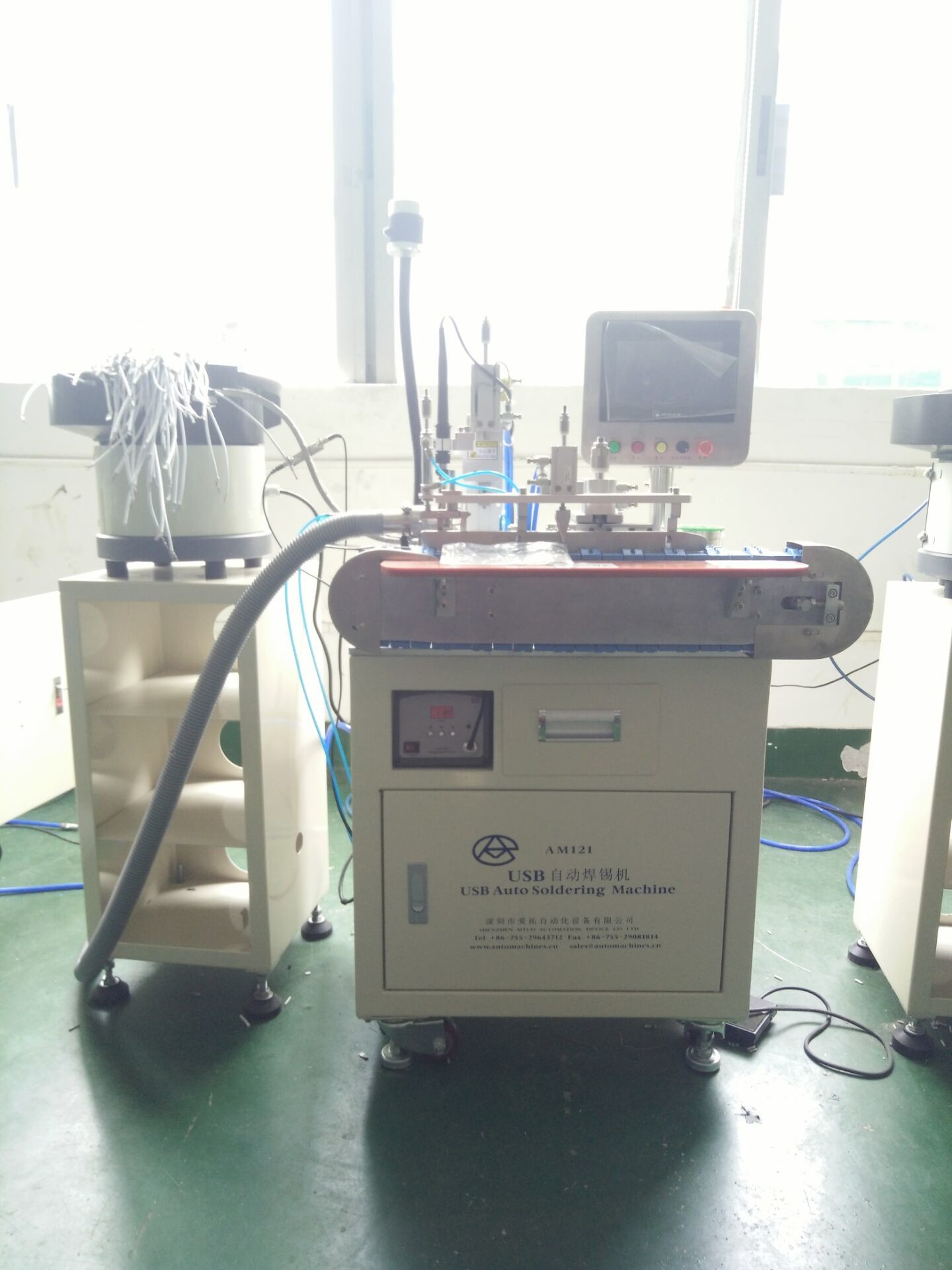

automatic advanced usb cable soldering machine
Product Features
1.Adopted the PLC program control , the data can be set easily on a 7 inches touch screen.
2.Constant soldering iron temperature , high accuracy digital operation.
3.Compared with manual welding, this machine can guarantee the tin soldering point symmetrically and firmly ,and save tin wires .
4.High soldering accuracy ,low defective rate , improve the mass &line production .
5.Adopted the vibration plate , can realize the function of cable transfer , distributing cables , straighten cables , peeling , slicing ,dipping tin, soldering , unloading materials and CCD test simultaneously.
6.Semi-automatic and full-automatic can be optional.
Technical parameters
|
Pressure Electric System |
Technical Index | Unit | Tech-Parameters |
| Main air pressure | kg/cm | 5~7 | |
| Motor Power | kw |
Single-phase 220V 0.15 Kw |
|
| Welding Iron Power | kw |
Single-phase 1.5 Kw |
|
| Total Wattage | kw | 1.5 Kw | |
| Working Power | kw | 1Kw | |
| Drive Mode | Pneumatic | 4~8Kg | |
| Temperature Control Mode | Zones | Thermostatic | |
| Welding Angle | <90º | 90º | |
| Inner Stripping Length | mm | 0~20 | |
| Power | W | 600 | |
| Working Efficiency | piece/h | 700~1200 | |
| Dimensions(L*W*H) | mm | 1120*630*1270 | |
| Weight | Kg | 180 Kg |

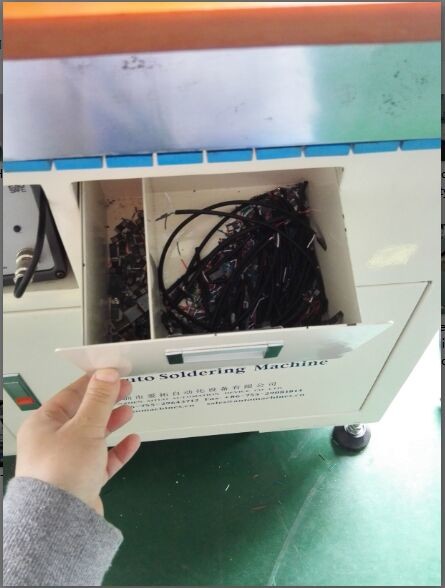

Finished sample

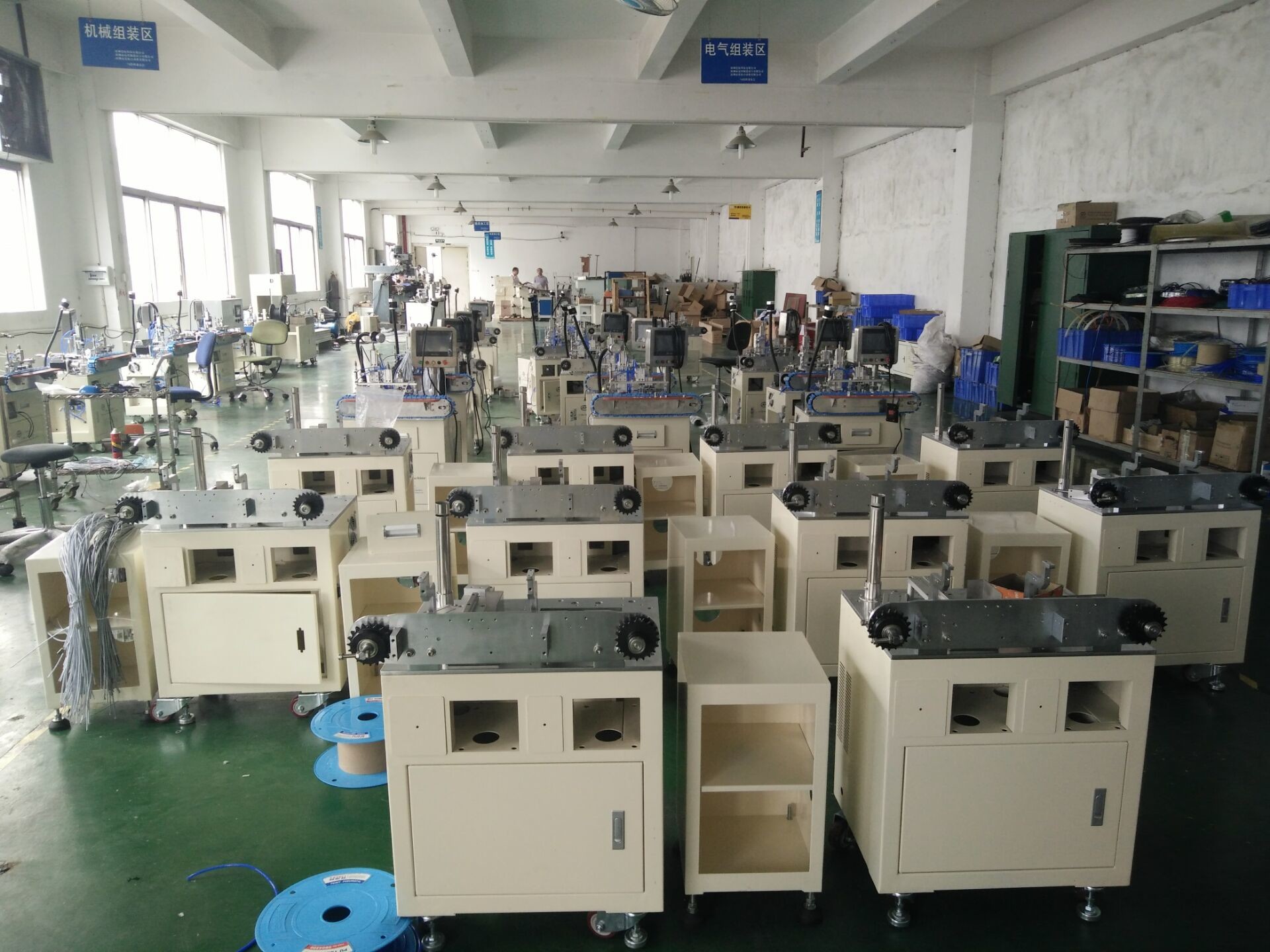

Workshop:
