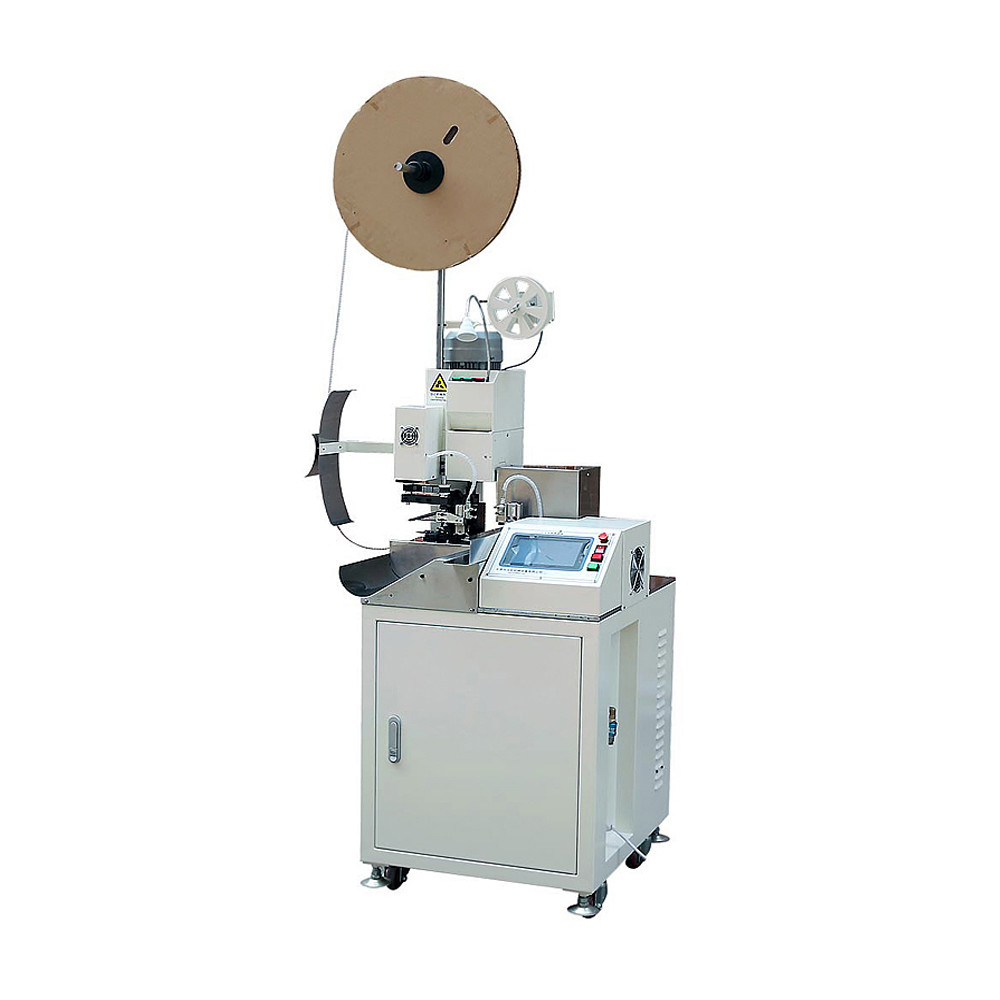

4000 Pcs / H Wire Crimping Machine Single - End Stripping With Twisting Fuction
| Place of Origin | China |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM201 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in strong export wooden box. |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 Sets Per Month |
Product Details
| Model | AM201 | Voltage | AC220V/50HZ |
|---|---|---|---|
| Function | Wire Cutting, Single-end Stripping, Both-end Stripping,single-end Crimping,single-end Twisting | Productivity | 4000 Pcs/h(Within 100mm) |
| Wire Specification | AWG#30-AWG#14 | Cutting Length | 25mm-9999mm |
| Cutting Accuracy | 1mm+cutting Length | Stripping Length | 0.1mm-10mm |
| Crimping Capacity | 1500KG | Twisting Length | 4mm-10mm |
| Air Pressure | 0.4-0.6mpa(need Clean And Dry Air) | Testing Equipment | No Wire ,unsound Touch |
| Dimension | 708W*600L*1050H(mm) | Weight | 240kg |
| High Light | cable crimping machine,cable wire crimper |
||
Product Description
4000 Pcs / H Wire Crimping Machine Single - End Stripping With Twisting Fuction
1. Features:
Procedural control interface,touch screen LCD display.Easy to operate and
stable performance.Fast send/cut/strip/crimp/twist wire,high precision,fast
speed,ultra low noise.The length of sending/cutting/stripping ,the twist tension
and speed, the crimping delay time,all of them can be controlled by digital
configured.
2. Functions:
Wire cutting,single-end stripping,both -end stripping,single-end
pressing,single-end twisting,and single-end half-stripping.
| Model | AM201 |
| Voltage | AC220V/50HZ |
| Function | Wire cutting, single-end stripping, both-end stripping,single-end crimping,single-end twisting |
| Productivity | 4000 pcs/h(Within 100mm) |
| Wire specification | AWG#30-AWG#14 |
| Cutting length | 25mm-9999mm |
| Cutting accuracy | 1mm+cutting length |
| Stripping length | 0.1mm-10mm |
| Crimping capacity | 1500KG |
| Twisting length | 4mm-10mm |
| Air pressure | 0.4-0.6mpa(need clean and dry air) |
| Testing Equipment | No wire ,unsound touch |
| Dimension | 708W*600L*1050H(mm) |
| Weight | 240kg |
