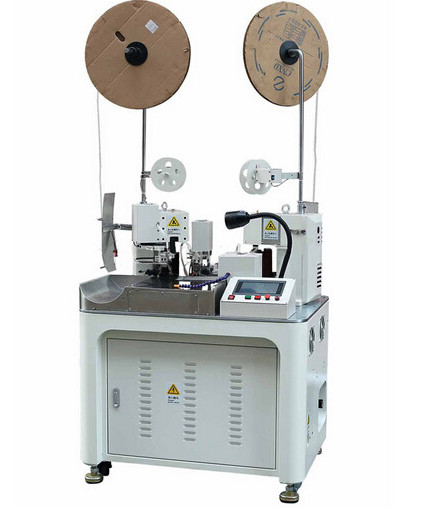

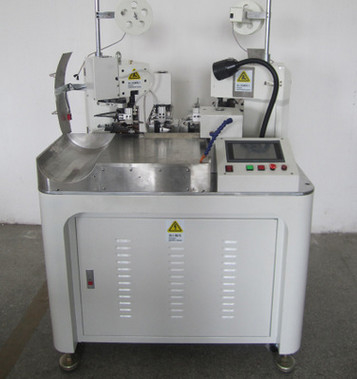

Fully Automatic Double Wire Crimping Machine Automatic Terminal Machine
| Place of Origin | China guangdong |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM205 |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | export wooden case package |
| Supply Ability | 50SETS Per month |
Product Details
| Cutting Length | Can Be Adjusted | Cutting Accuracy | Cutting Length *0.2% |
|---|---|---|---|
| Stripping Length | Cable Head 10mm, Cable Tail 14mm | Function | Double Cable Combined Terminal Crimping |
| Dimension | 750mm*850mm*1700mm | Weight | 420kg |
| High Light | automatic crimping machine,cable wire crimper |
||
Product Description
Automatic terminal machine crimping molex terminal
This machine designed for one side single wire crimping and the other side 2 wires crimping into one terminal.available wire range AWG#16~AGW#28.two wries cutting,stripping and crimping two ends, speed up to 4000~4500pcs/H or it also can only procession single wire cutting,stripping,crimping,speed up to 8000~9000pcs/H.
It is widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.
AM205 Automatic wire terminal crimping machine Technical Parameters;
| Model | AM205 Fully automatic terminal crimping machine crimping double wires |
| Applicable wire size | AWG#16~AWG#28(1.31mm2~0.8mm2) |
| Cutting length | 45~99999.9MM(It can add delivery device if need to cut longer wire) |
| Stripping length | wire head;10mm wire tail:14mm |
| Pressing capacity | 1.5T(can adjusted as special demands) |
| Detection device | Wire existence,wire overload, strip error,terminal existence, crimp error. Bad crimping |
| Function | Electric wire cutting, single end stripping, two ends stripping, single end crimping , double ends crimping,double wires crimping. |
| Available crimping mould | Side feed crimping mould or rear feed crimping mould |
| Voltage | AC210~230V 50/60HZ 10A |
| Air pressure | 0.5MPA 140NL/min |
| Weight | 400kg |
| Dimension | 750*800*1700mm |
