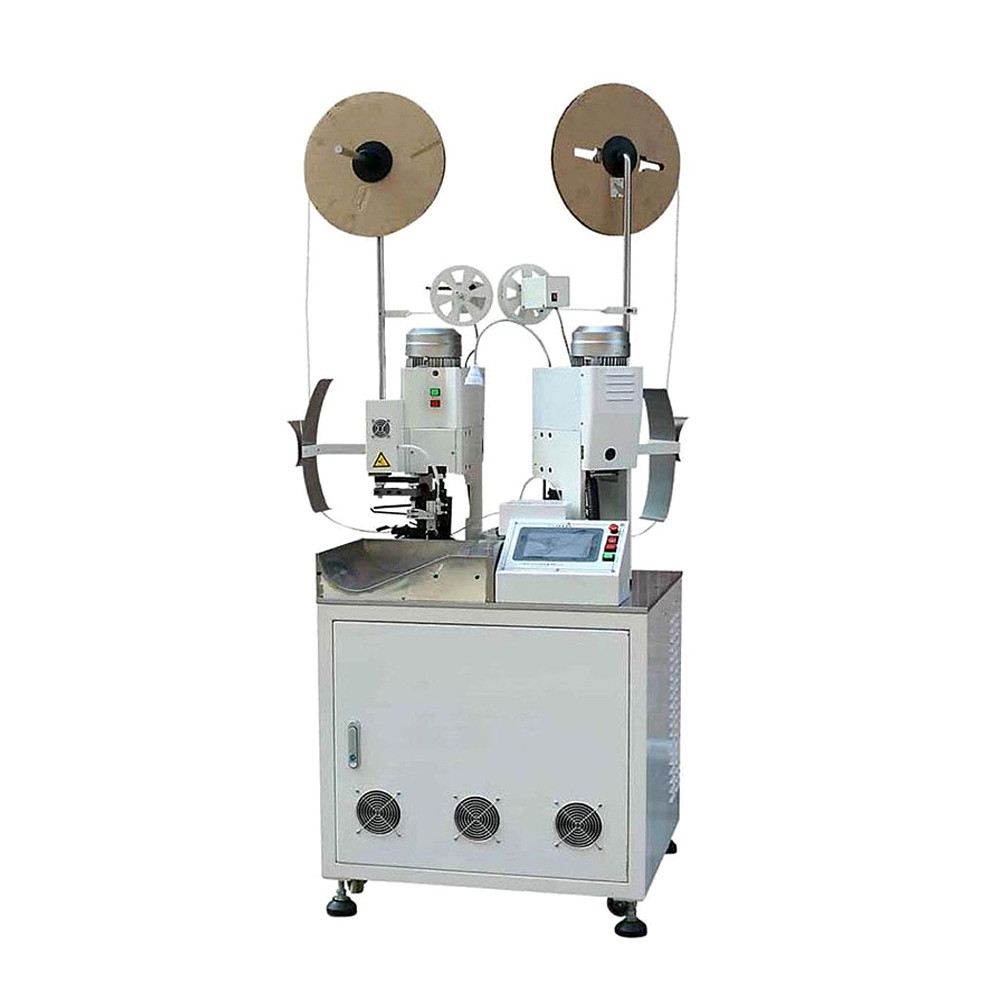

Two Ends Wire Cutting Stripping And Crimping Machine 2.0T Crimping Capacity
| Place of Origin | China |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM202 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in strong export wooden box. |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 Sets Per Month |
Product Details
| Model | AM202 | Voltage | AC220V/50HZ |
|---|---|---|---|
| Productivity | Both Ends Crimping:4800PCS/H | Wire Specification | AWG32#-AWG14# (0.05mm² -- 2.0mm²) |
| Cutting Length | 40mm-9999mm | Cutting Accuracy | 0.5mm+(Set Cutting Length ×0.002) (Cutting Length Less 100mm) |
| Stripping Length | (Front-end)：1.00～15.00/25.00mm (back-end):1.00～8.00mm | Crimping Capacity | 1.0T/1.5T/2.0T |
| Twisting Length | 2mm-20mm | Air Pressure | 0.5 MPA |
| Testing Equipment | No Wire ,unsound Touch | Dimension | L1000mm*W800mm*H1450mm |
| Weight | 300KGS | Blade Material | Tungsten Steel/alloy Metal |
| High Light | automatic crimping machine,cable wire crimper |
||
Product Description
Two Ends Wire Cutting Stripping And Crimping Machine 2.0T Crimping Capacity
1. Features:
Automatic wire cutting stripping and crimping machine adopts procedural
control interface with touch screen LCD display,it has operate system in
Chinese and English, easy to operate and stable performance.Fast send
wire ,cut wire,strip wire and crimp the terminals,high precision, fast speed,front
and rear swing arms are both controlled by servo,and ultra low noise,more
stable.The length of sending/cutting/stripping wire,and the delay time of
crimping,which all can be accomplished by digital configuration.
| Model | AM202 |
| Size | L1000mm*W800mm*H1450mm |
| Weight | 300kg |
| Display | English LCD Touch screen |
| Voltage | AC220/50Hz,AC110/60Hz Single phase |
| Productivity | Both ends crimping:4800pc./h |
| Cutting Length | 40 mm—9999 mm |
| Cutting Tolerance | 0.5mm+(Set cutting length ×0.002) (Cutting length less 100mm) |
| Twisting Length | 2mm-20mm |
| Stripping Length |
(Front-end):1.00～15.00/25.00mm (back-end):1.00～8.00mm |
| Section Area of wire | AWG32#-AWG14#(0.05mm2-2.0mm2) |
| Wire suitable | Electrical wire,high temperature wire and so on |
| Blade material | Tungsten steel/alloy metal |
| Drive style | Four wheel drive |
| Air pressure | 0.5 MPA |
| Crimping force | 1.0T/1.5T/2.0T |
| Available applicator | Side Applicator,End Applicator |
