AM121 Custom Date Cable Soldering Machine Constant Temperature For Type - C
| Place of Origin | China |
|---|---|
| Brand Name | AITUO |
| Certification | CE |
| Model Number | AM121 |
| Minimum Order Quantity | 1SET |
| Price | Negotiation |
| Packaging Details | Exported Wood Package |
| Delivery Time | 5-10 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 sets per moneth |
Product Details
| Function | Type-C Soldering | Air Source Pressure | 0.8 MPA |
|---|---|---|---|
| Production/hour | 1100-1200PCS | Applicable Wire | 2.6-2.7mm |
| Dimensions | 800*600*1100MM(L*W*H) | Soldering Angle | 90 Degree |
| Soldering Material | Tin Wire | Mounting | Fall On Ground And Movable |
| High Light | automatic wire soldering machine,usb cable making machine |
||
Product Description

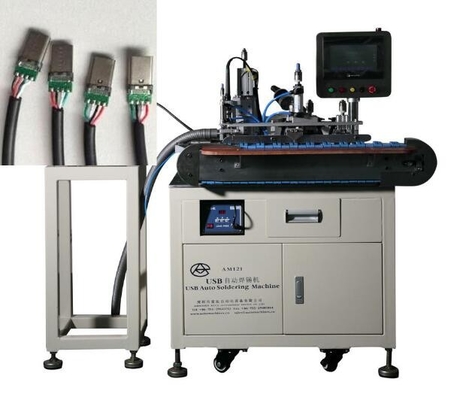

AM121 Custom Date Cable Soldering Machine Constant Temperature For Type - C
Features:
This machine is the newly developed automation machine of Shenzhen Aituo Automation Device Co., Ltd. With advanced structure,easy maintenance,ease of operation,long life,high output, stable performance,environmental protection and so on. Procedures of stripping, cutting flush,Wire Bonding, plastic shell loading are automatically finished.Largely decrease the labor cost and reduce the user’s labor intensity. it solves the problem which hard soldering procedure environment,ensure safe and comfortable operating environment.
Application Range
1) the soldering between USB A Male connector and wire.
2) the soldering between USB B Male connector and wire.
3) the soldering between micro USB connector and wire.
4) the soldering between mini connector and wire.
5) the soldering between iphone connector and wire.
6) the soldering between PCB/Switch and wire.
| Voltage | AC220V/110V |
| Power | 600W |
| Air Pressure | 0.5-0.8MPA |
| Productivity | 800-1200pcs/h |
| Dimension | 800*600*1100MM(L*W*H) |
| Mounting | Moving on ground |
| Temp control model | Constant temperature |
| Soldering material | Soldering wire |
| Soldering angle | 90 degree |
Why choose us?
1. Efficiency improvement
This machine’s feeding method’s timing.Time mode suitable for skilled workers,feeding time can be adjusted based on workers’proficiency,improve the utilization of human-resource at maximum extent, then to get maximum the production efficiency
2. Genuine materials
Cylinders and pneumatic accessories of machine are made by AirTAC.Linear bearings and rectilinear guide rod are manufactured by Misumi.Optoelectronics control elements are made by Omron.The selected suppliers are current leading manufacturers.Superior quality,reliable, stable performance,working life guaranteed, significantly eliminated the customer's worries.
We Shenzhen Aituo Automation Device Co.,LTD is one of the leading automatic machines manufacturer in China.
We have wide experience in soldering and brazing machines between many kinds of master batch, from wire soldering to copper brazing.
We have customed many full-automachines for different enterprises from different countries, greatly decreased their cost of labor and improved their efficiency.
If you have any requirement of automachine, pls feel free to contact me with you detailed demand, our engineer will give you a best solution.
