Single End Loosen Terminal Crimping Machine for 0.08mm² - 2.0mm² Wire
| Place of Origin | China |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM201-1 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in strong export wooden box. |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 Sets Per Month |
Product Details
| Voltage | AC220V/50HZ | Function | Both Ends Stripping,half Stripping,Single End Crimping |
|---|---|---|---|
| Capacity Single End Crimping | 3000PCS./H | Wire Specification | 0.08～2.0mm²（AWG#28～#16) |
| Cutting Length | 25mm-9999mm | Crimping Capacity | 2T |
| Strip Length | 1.5mm-----10mm | Dimension | 650W X 700L X 1500H(mm) |
| High Light | automatic crimping machine,cable wire crimper |
||
Product Description

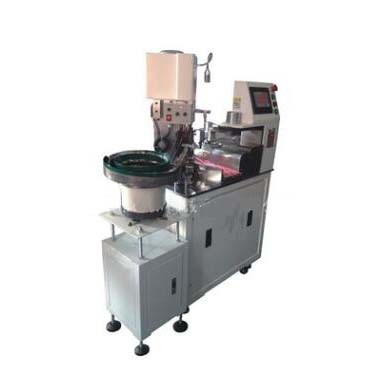

Single End Loosen Terminal Crimping Machine for 0.08mm² - 2.0mm² Wire
Features
1．Use high speed single board computer( PLC) control system, Stable perfor
mance.
2．Use touch screen, Full digital control, Ease of operation.
3. Use high Precision Stepper motor drive, High performance-price ratio.
4. Use Japan THK Guide, SMC Pneumatic components, TAIWAN F&G Detect
ion component.
5. Use vibrating disk feeding Terminal, Pneumatic Crimping die Positioning, Ef
ficient and Stable.
Specification and Parameter
| Model | AM201-1 |
| Wire Size | 0.08～2.0mm²(AWG#28～#16) |
| Capacity Single end crimping | 3000pc./h |
| Function | Both ends stripping,half stripping,Single end crimping |
| Cutting Length | 50～9999mm |
| Cutting Accuracy: | ±0.1+(Set cutting length ×0.002) |
| Strip Length | 1.5mm-----10mm |
| Detector | Wire existence, Wire overload, Crimp error, Air pressure down |
| Press Capacity | 2T |
| Power | Single Phase AC220V 20A |
| Compressed Air | 4----6kgf |
| Dimensions | 650W X 700L X 1500H(mm) |
| Weight | 308KGS |
