Automatic Screw Locking Assembly Machine / Multi Axis Screw Fastening Machine
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | AITUO |
| Model Number | AM-803 |
| Minimum Order Quantity | 1 |
| Packaging Details | Standard Export Carton |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram |
Product Details
| Machine Name | Automatic Screw Locking Assembly Machine/ Automatic Multi-axis Screw Fastening Machine | Application | Screw Locking Machine |
|---|---|---|---|
| Type | Muti-axis Screw Locking/ Fastening Machine | Function | Locking Screws |
| Screwdriver Operation Method | Electricial / Pneumatic Screwdriver | Suitable Screw Head Type | All Type |
| Frequency | 50/60HZ | Rated Input Power | 0. 8KW(according To Locking 8 Pcs Screws) |
| Working Air Pressure | 4.5 ~ 6.5kgf/cm2 | Consumption Of Air Pressure | 30m3/hour(according To Locking 8 Pcs Screws) |
| Axis Of Quantity | According To Customer's Requirement Customize | Control | PLC Control |
| Rated Voltage | 220v/110v | Payment | T/T, Western Union, MoneyGram |
| Packing | Standard Export Carton | Production Capablitity | 1.2-2.5sec/pcs |
| High Light | led soldering machine,solder paste screen printing machine |
||
Product Description

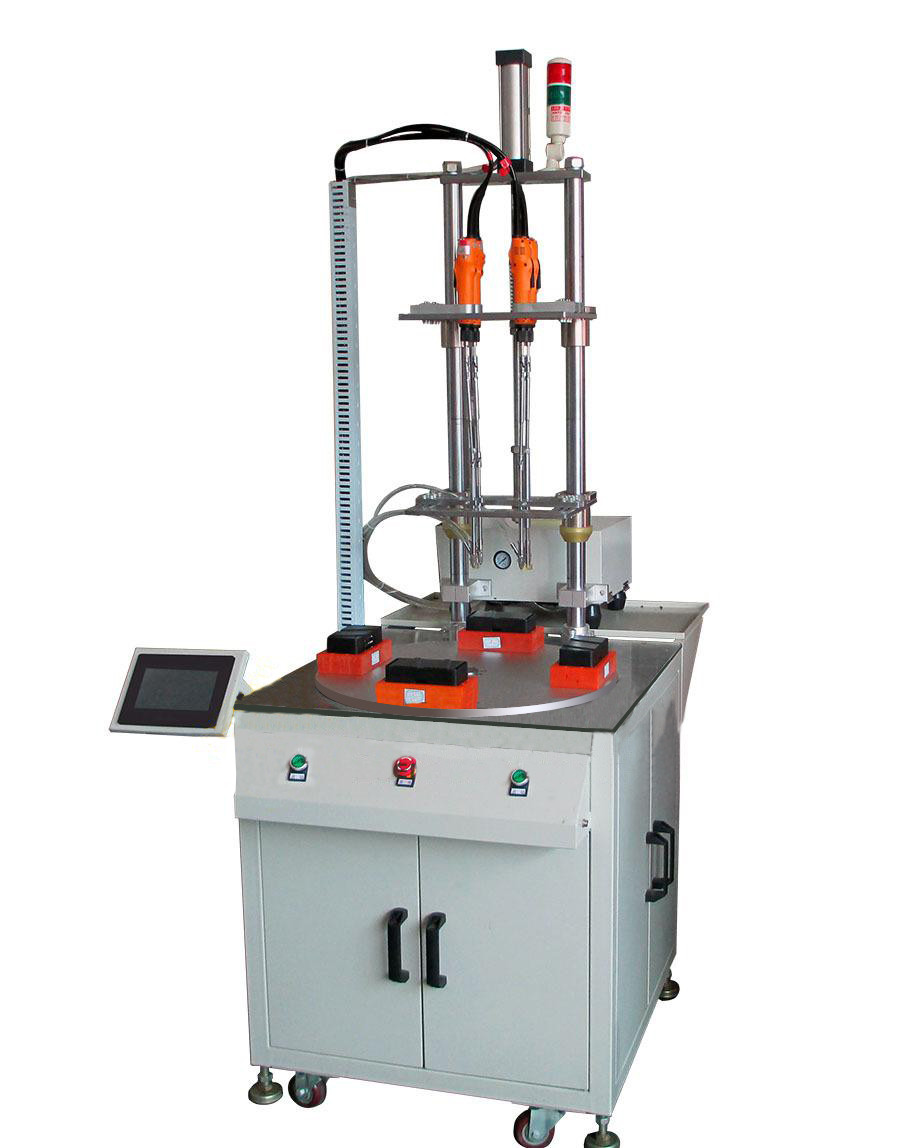

Automatic Screw Locking Assembly Machine / Multi Axis Screw Fastening Machine
Function:
PLC control system, automatic screw using the vibration plate feeding, feeding screw device automatically feed screws into the screwing mouth, unique control mode, no repeat feeding, electric screwdriver torque can be adjusted, head position can be adjusted within a radius of 10mm, one-time lock 6 screws, improve work efficiency. With pipeline docking, automatic loading and unloading.
Application:
Mainly used in metal, electronics production, electrical appliances fields.
Technical parameters:
Production capablitity: 1.2-2.5sec/pcs
Driving pressure: 4.5 ~ 6.5kgf/cm2
Operating voltage: 110V ~ 250V
Surface treatment: all stell parts are chrome-plating, all aluminium parts are anodized. The main standard parts in our machine were imported famous brand, guarantee accurate operation.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
