Hot selling made in china insulated terminal crimping machine
| Place of Origin | China |
|---|---|
| Brand Name | Aituo |
| Certification | ISO,CE |
| Model Number | AM205-A |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 15 Days after confirm payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 Sets / month |
Product Details
| Model | AM210 | Voltage | AC220V 50Hz |
|---|---|---|---|
| Applicable Terminal | Insulated Cord Terminal Crimping Machine | Pressure | 1.5T |
| Dimension | 1400*1100*1450(mm) | Weight | 200KG |
| High Light | pneumatic crimping machine,wire terminal crimper |
||
Product Description

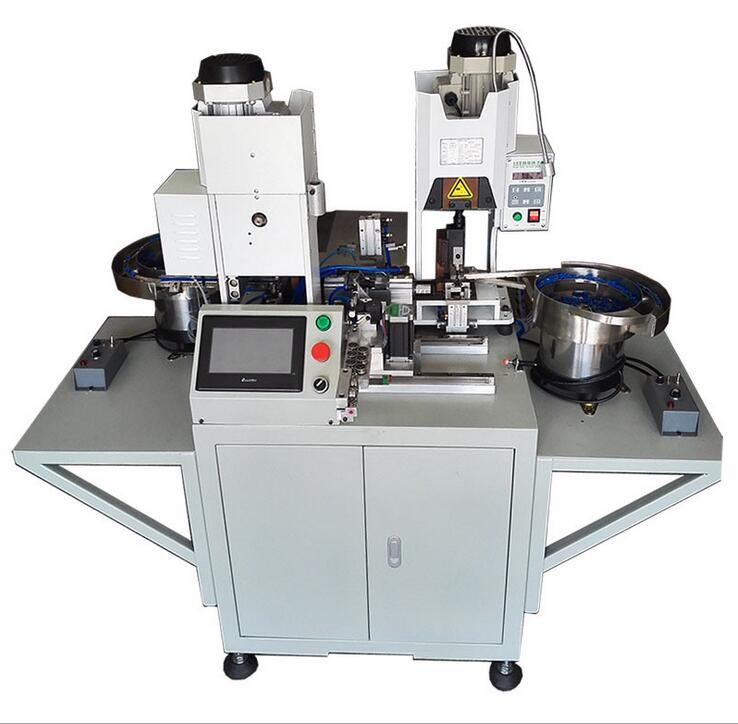

Hot selling made in china insulated terminal crimping machine
Features:
1.PLC controller,touch screen disaplay easy to operate and set all technical parameters.
2.Adopt branded stepping motors and drivers control ensure to cut and strip precisely.
3.Crimping system use frequency conversion mute terminal crimping machine,lower noise and steady.
4.Equipped with vibration plate to feeding loose terminal to working position then automatic punching,crimping at one time.
Technical Parameters;
| Usage | Automatic feeding wire and terminal,cutting to length,Stripping two ends and crimping two ends. |
| Applicable terminal | Insulated cord terminal crimping machine |
| Productivity | 1200pcs/H(Length=100mm) |
| Cutting length | 100~9999mm(the shortest cutting lenght depend on crimping applicator) |
| Cutting error | 0.5mm+(cutting length*0.002) |
| Crimping force | 1.5T |
| Power | AC220V 50/60HZ 10A |
| Air pressure | 0.5MPa about 140NL/min |
| Working temperature | 5~25℃ |
| Working humidity | 30~80%RH |
| Size | 1400*1100*1450(mm) |
| Machine Weight | 200KG |

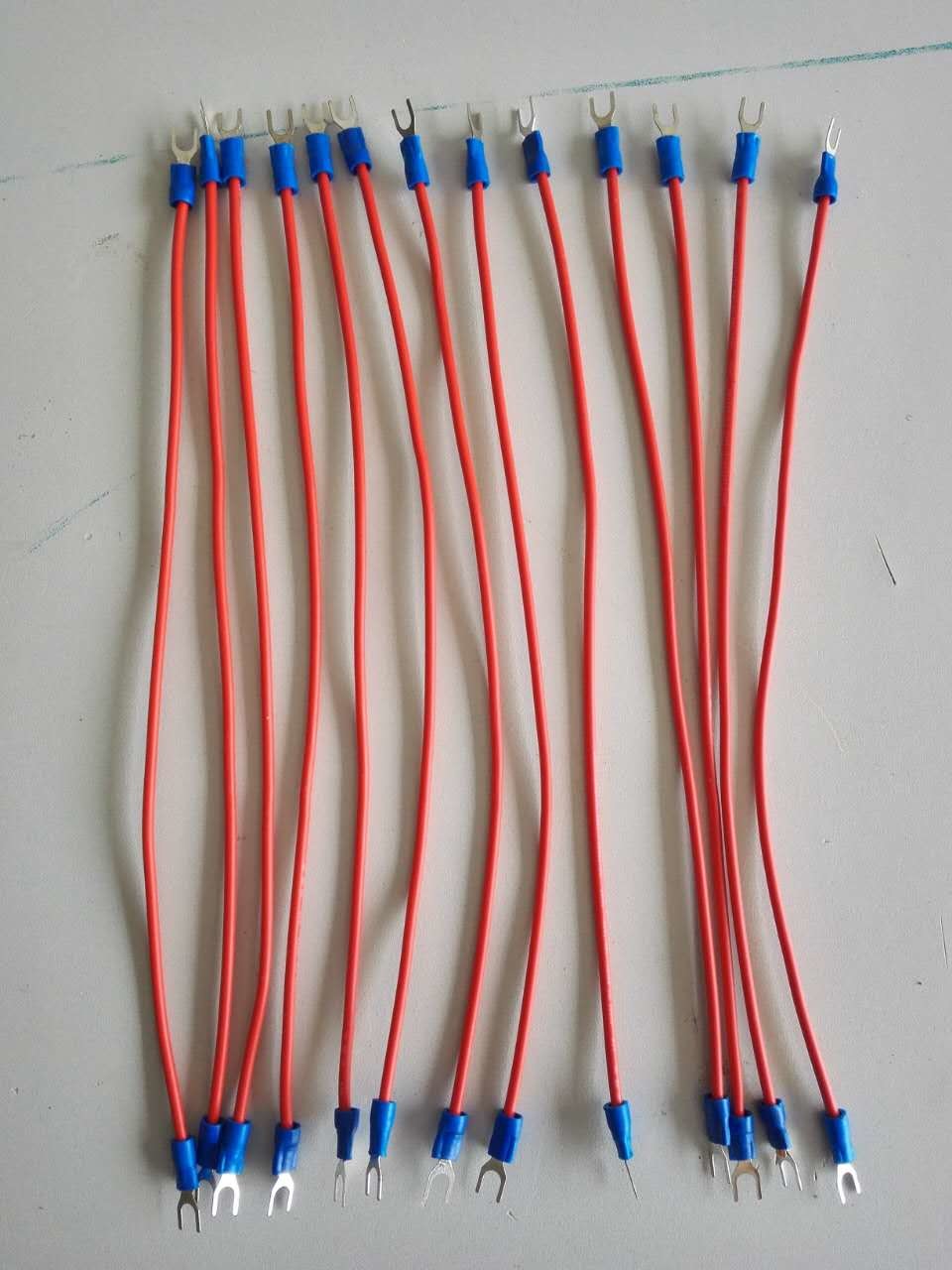

Fnished Product;
If you wanna see working video please contact by export(at)automachines.cn

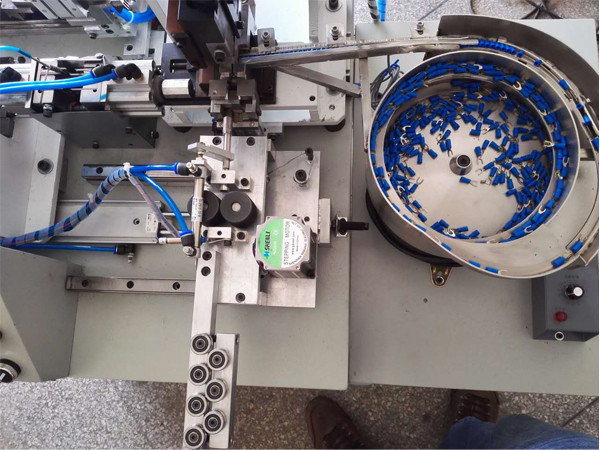

Automatic feeding Insulated cord terminal system;
7 inch touch screen display, easy to learn and operate;-)
Company Information
Shenzhen Aituo Automation Technology Co., Ltd. is one of famous company of China specialized in the production of automatic cable bundling machine and processing equipment for wire terminal.We have a complete and scientific quality management system. The full-automatic bundling machine we produced complete cable winding and cable bundling at one step, with high speed, high quality.
Our processing equipment of wire teminal includes: automatic terminal machine, Ultra-quiet terminal machine, full- automatic computer wire stripping (twisted) machine, gas stripping machine, Copper strap machine, and other special equipment . We have professional technicians and a first-class after-sale service team, Can at any time provide comprehensive technical support and service to the customers.
We always base on the principle of "quality first, integrity and innovation, to meet the demands of customers" ,Our company and products are widely accepted by local and oversea customers. Our products have been exported to India, Japan, Korea, Vietnam, Singapore, Australia, Canada, America, Mexico, Brazil, Argentina, England, France, Germany, Netherlands, Italy, Turkey, Poland & other regions with good quality and competitive prices.
