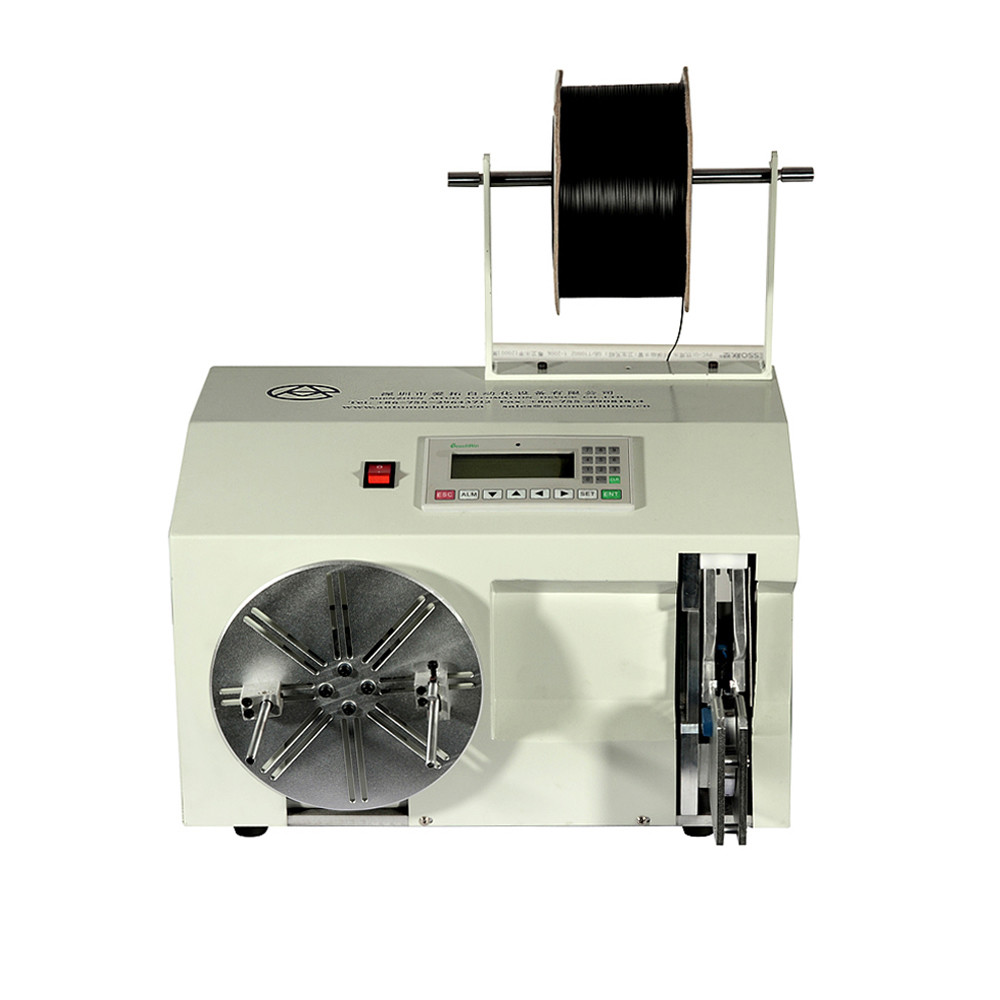

280 RPM USB / DC Cable Automatic Winding Machine With Touch Screen Display
| Place of Origin | China |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM102 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 5 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Set/Week |
Product Details
| Voltage | AC 220V | Production Per Hour | 500-700 Pcs |
|---|---|---|---|
| Winding Length | 1-10 Meter | Winding Speed | 280 RPM |
| Twist Shape | Round&long&8 Shaped | Tie Length | From 80 To 150mm |
| Tie Needed Specification | 2.2*1mm | Dimension | 510x580x530MM (L*W*H) |
| High Light | automatic bundling machine,bundle tying machine |
||
Product Description
280 RPM USB / DC Cable Automatic Winding Machine With Touch Screen Display
Features:
1. Semi-automatic winding&bundling machine takes advanced technology
and precision manufacturing, winding and tying AC cable ,DC cable, data line,
video cable, other electric wires and twisted bundles.Wire heads can be on
one side or two sides. Winding and tying are complete at one time.
2. This work efficiency is three to four times faster than working by hand.
Ending the history of huge labor and hurting fingers as well as saving high cost
of owner.
Characters:
1. The machine is controlled by PLC or controller and touch screen display.
Speed of winding cable, number of circle can be set up at random according to
users’ requirement.
2. This machine can display actual production quantity at any time, also set up
quantity of each carton. When the quantity reach setting quantity, machine will
automatically alarm and shut down.
3. When something wrong during work, the machine warn operators
immediately. In order to set up machine, both automatic switch and manual
switch are available.
Specifications:
| Voltage | AC 220v |
| Production per hour | 500-700 pcs |
| Winding length | 1-10 meter |
| Winding circle | Any |
| Winding speed | 280 RPM |
| Twist bundle length | 60-200mm&adjustable |
| Twist Shape | Round&long&8 shaped |
| Tie length | From 80 to 150mm |
| Tie quantity | any |
| Twist circles | any |
| Tie needed specification | 2.2*1mm |
| Dimension | 510x580x530MM (L*W*H) |
| Installation | On table and movable |
Glad to learn you're on the market of automatic machine.
7 years experience, 5 engineers, ISO&CE certificated.
Our main machines cover most of automation devices while our featured products are all type of cable processing machines and we can also custom machines to meet demand of our customers.
If any product meet your demand, please contact us. We are sure any your question will get our prompt reply.
