Semi Automatic Electrical Wire / Cables Coil Winding Machine AC 220V / 110V
| Place of Origin | Guangdong China |
|---|---|
| Brand Name | AITUO |
| Certification | ISO |
| Model Number | AM102 |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard export carton |
| Delivery Time | 7~10 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 300sets per month |
Product Details
| Usage | Winding And Tying Wires | Productivity | 500-700pcs/H |
|---|---|---|---|
| Winding Length | 60-200mm&adjustable | Tie Length | 80~150mm (as Your Demand) |
| Cable Length | 1-10 Meter | Winding Shape | 8 Shape Or 0 Shape |
| Voltage | 220V/110V | Packing | Standard Export Carton |
| Lead Time | Around 7~10 Working Days | ||
| High Light | automatic bundling machine,bundle tying machine |
||
Product Description

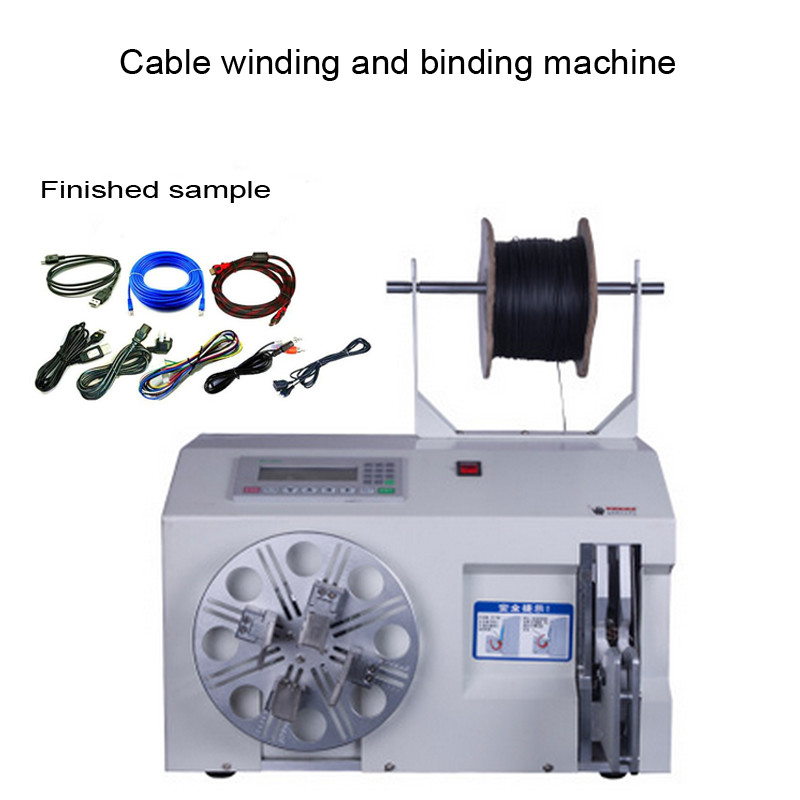

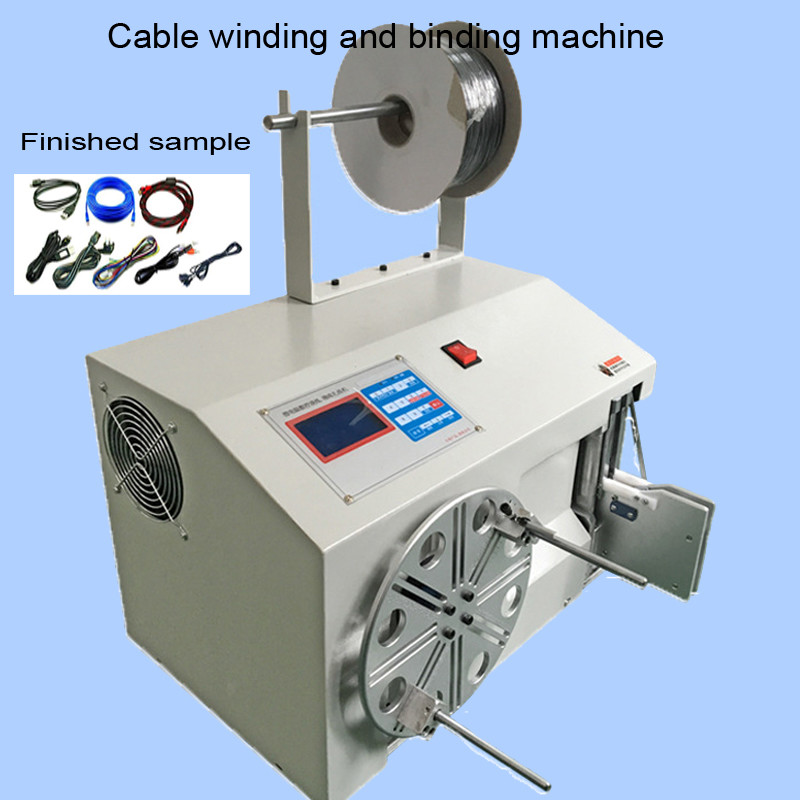

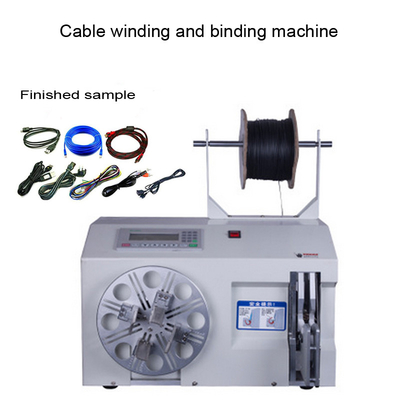

electrical wire and cables coil winding machine
Features:
1.This machine can wind and tie USB cable,AC cable ,DC cable, data line, vedio cable, other electric wires.cable heads can be on one side or two sides. Wind and tie are complete at one time.
2.This work efficiency is three to four times faster than working by hand. Ending the history of huge labour and hurting fingers as well as saving high cost of owner.
3.Small size save space,PLC touch screen display easy operation.
Specifications:
| Voltage | AC 220V/110V |
| Production per hour | 500-700 pcs |
| Cable length | 1-10 meter |
| Winding circle | Any |
| Winding speed | 280 RPM |
| Winding length | 60-200mm&adjustable |
| Winding Shape | Round&long&8 shaped |
| Tie length | From 80 to 150mm |
| Tie quantity | any |
| Twist circles | any (advise 3~5 circles) |
| Tie suitable specification | 2.2*1mm |
| Dimension | 860x800x1280MM (L*W*H) |
| Installation | On table and movable |
Characters:
1.The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, number of circle can be set up at random according to users’ requirement.
2.This machine can display actual production quantity at any time, also set up quantity of each carton. When the quantity reach setting quantity, machine will automatically alarm and shut down.
3.When something wrong during work, the machine warn operators immediately. In order to set up machine, both automatic switch and manumotive switch are available.
Packaging & Shipping
About Packaging
All machines we sell wil be packed with wood box,covered with steel tie on the surface in order to avoid being damaged during delivery!
About Delivery Time
We send the shipment in FOB term.However,the terms of CIF and C&R are acceptable which depends on preference of clients
About Quality
All machines before delivery will be checked again and again.Meanwhile,CE certificate’s available for customers' needs
