Fully Automatic Wire Coil Winding Binding Cable Bundling Machine
| Place of Origin | Guangdong China |
|---|---|
| Brand Name | AITUO |
| Certification | ISO |
| Model Number | AM106 |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard export carton |
| Delivery Time | 7~10 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 150sets per month |
Product Details
| Usage | Winding And Tying Wires | Applicable Wires | All Kinds Of Wires Such As Usb Cable,power Cable Etc |
|---|---|---|---|
| Available Wire Length | 80mm-10m | Winding Length | 70-200mm |
| Left Head Length | 0-100mm | Left Tail Length | 0mm |
| Winding Shape | 8 Shape Or 0 Shape | Voltage | 220V/110V |
| Packing | Standard Export Carton | Lead Time | Around 7~10 Working Days |
| High Light | automatic bundling machine,bundle tying machine |
||
Product Description

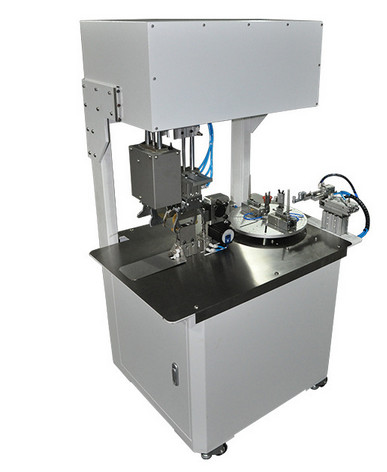

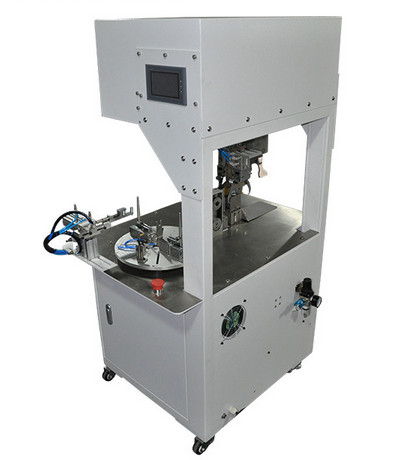

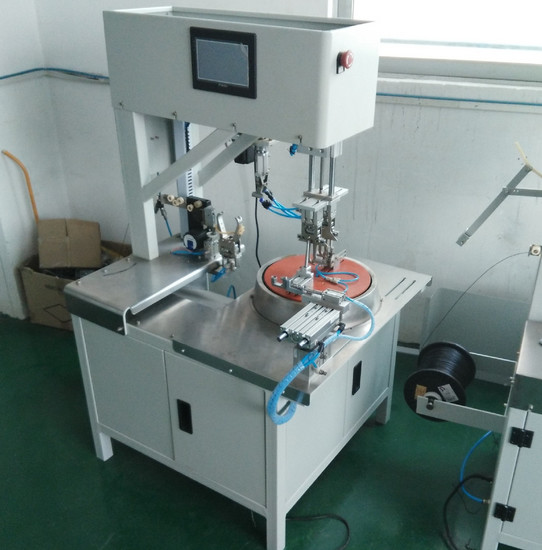

Fully Automatic wire Coil Winding binding Machine for winding and tying wires
Features;
1.It is special for winding and binding USB cable,AC/DC power cable,HDMI cable or other electric cables into "8" or round type. 2.there is only need to do put the wires on the machine working place then it will winding and tying wires automatically,speed up to 1000~1200pcs/H.
3.Winding length,Header and Tail length are adjustable.
4.Suits for the cable/wire that required packing delicate and cabinet. 5.High quality thanks to use imported original Japan SMC air cylinder,full set of AirTAC pneumatic components ensure the finished product is perfect and the machine long uselife time.
6.Humanized design, tight size save space;easy to operate and maintenance, reduce operate fatigue strength.
Automatic Coil Electrical Fan Fishing Line Winding Machine Techinical parameters;
| Model of machine | AM106 |
| Winding speed | 1000~1200 pcs/hour |
| Total winding length | 70mm ~ 330mm |
| Length of the wire | 80mm-10m |
| Normal head length | 0~300mm |
| Normal tail length | 0mm~200mm |
| Length of the cable tie | can be adjusted |
| Number of turns for tie | can be adjusted |
| Voltage | AC220/50Hz |
| Pressure of air source | 0.5~0.8Mpa |
| Max binding force | 6N |
Characters:
1.The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, number of circle can be set up at random according to users’ requirement.
2.This machine can display actual production quantity at any time, also set up quantity of each carton. When the quantity reach setting quantity, machine will automatically alarm and shut down.
3.When something wrong during work, the machine warn operators immediately. In order to set up machine, both automatic switch and manumotive switch are available.

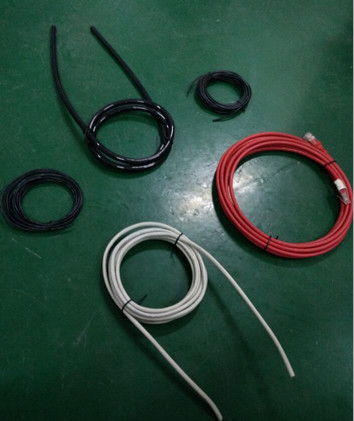

Finished Samples
