AM609 Coxial cable wire cutting stripping machine with fast speed and competitive price
| Place of Origin | GuangDong China |
|---|---|
| Brand Name | AM |
| Certification | CE |
| Model Number | AM609-1 |
| Minimum Order Quantity | 1Set |
| Price | Negotiation |
| Packaging Details | Export standard wood package,cover wtih steel tie on its surface. |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100set per/month |
Product Details
| Voltage | 220V/50HZ | Power | 380W |
|---|---|---|---|
| Weight | 19KG | Dimensions | 525*186*278mm |
| Maximum Stripping Length | 48mm | Maximum Peeling Layers | 9 Layers |
Product Description
AM609 Coxial cable wire cutting stripping machine with fast speed and competitive price
1. Suitable for different types of semi-flexible and flexible coaxial wires, charging cables, medical wires' processing in communication and medical industry. Stripping edge smooth and no harm to the conductor.
2. Huma-computer interface, easy to operate and understand, Max. 9 layers of stripping and 99 sets of memory function.
3. Rotation bladse head, four pieces of exquisitely designed blades improve stripping stablility and blades' lifetime.
4. Adopt servo-motor, precision ball screw and multi-point movement control system, working performance is stable and efficient.
5. Blades are made of imported tungsten steel and titanium alloy coating. sharp and durable.
6. This machine can meet multi-section stripping, stripping & twisting, automatic start in succession and other special requirements.
| Available wire size | Max Diameter 6.99mm |
| Voltage | 220V/50HZ |
| Display | LCD screen |
| Power | 380W |
| Dimension | 525*186*278mm |
| Weight | 19KG |
| Max stripping length | 48mm |
| Max stripping layer | 9layers |
| Cutting depth | 0.01mm |
| Blade Material | Hard tungsten steel(Made in Switzerland) |
| Productivity | 500-700pcs/h(depending on cable type and length) |
| Open mode | Manual /Sensor |
| Centering piece | Imported tungsten steel |
| Drive mode | Motor/ball screw drive(imported from Japan) |
| Working environment |
0-50 degrees,moderate dryness,vibration-free work surface |

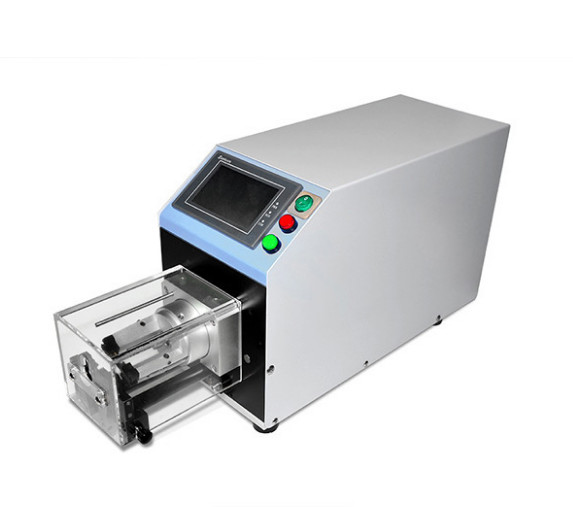

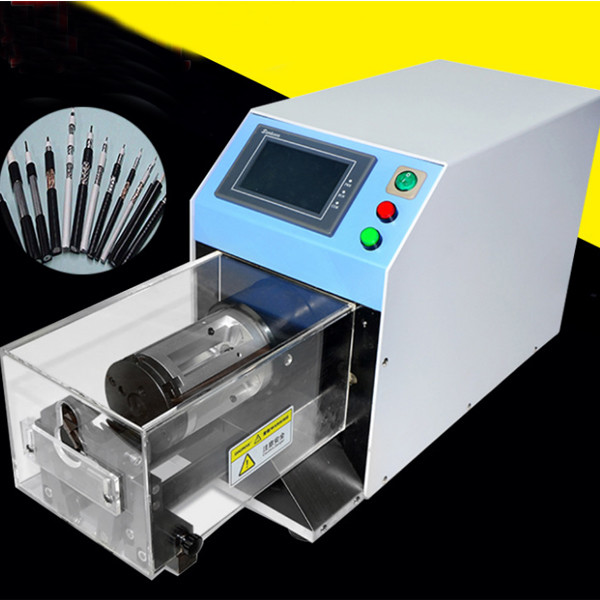

Coxial cable wire cutting stripping machine image:

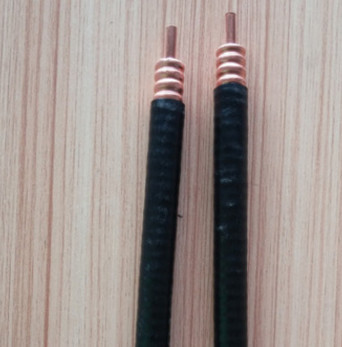

Finished samples:
