New product high quality automatic wire cutting stripping machine China factory sale
| Place of Origin | China |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM601 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 5 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Set / Week |
Product Details
| Available Wire Size | 0.1-2.5mm²(AWG14#-AWG32#) | Power | 200W |
|---|---|---|---|
| Voltage | AC110/220V 50/60HZ | Productivity | 5000-15000pcs/h (L=100mm ) |
| Cutting Length | 1-9999mm | Cutting Tolerance | ±0.002 *L( Cutting Length) |
| Stripping Length | Head:0-35mm Tail:0-15mm | Max Conduit Diameter | Ø5mm |
| Product Name | New Product High Quality Automatic Wire Cutting Stripping Machine China Factory Sale |
Product Description
New product high quality automatic wire cutting stripping machine China factory sale
This is the most economical full automatic cable stirpping and cutting machine, suitable for AWG14-AWG32 wires. Only need to set the cutting length, stripping length of both side, total amount etc, then it will strip & cut automatically.
Apply for:
It is widely used in the electronics industry, such as the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.
Available wire material such as PVC/teflon/silica gel line /Fiber Glass Wire, etc.
Specifications:
Model: AM601 (Economy type)
Available Core Cross-Section Range:0.1 - 2.5mm2 (AWG14 - AWG32)
Conduit Diameter: Φ4.5mm
Cutting Length: 1 - 9999mm
Stripping Length: Head 0 - 35mm, Tail 0 - 15mm
Memory Function: Can store Max. 99 group programs
Max. Middle Stripping Section: 11
Cutting Tolerance: ±(0.002×L) (L = Cutting Length)
Speed: 3000 - 8000pcs/hour
Display: LCD english display
Drive Mode: two wheels drive
Blade Material: Hard tungsten steel
Appropriate Wire: Suitable wires, such as PVC, Teflon, Fiber glass wires etc.
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 160W

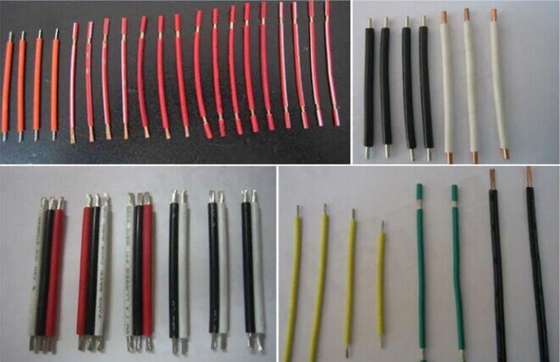

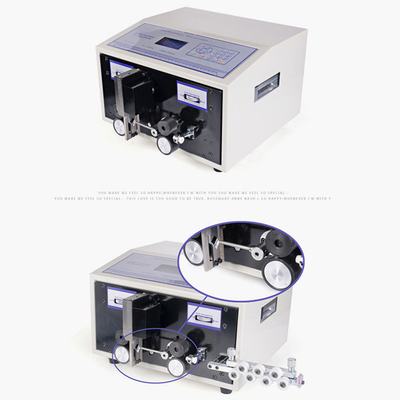

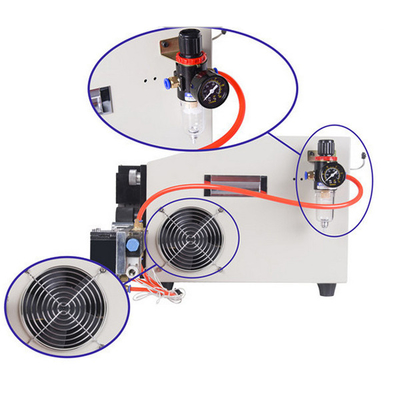

Machine Photos
