Automatic Wire Stripping Machine for thick wire,Thick Wire Stripper Machine
| Place of Origin | China |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM603-16 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | exported wooden box |
| Delivery Time | 5work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20 Set / Week |
Product Details
| Available Wire Size | 0.1-16mm²(AWG5#-AWG30#) | Power | 220W |
|---|---|---|---|
| Voltage | AC110/220V 50/60HZ | Productivity | 2000~5000 (L=100mm ) |
| Cutting Length | 1-9999mm | Cutting Tolerance | ±0.002 *L( Cutting Length) |
| Stripping Length | Head:0-50mm Tail:0-50mm | Max Conduit Diameter | Ø13mm |
| Product Name | Automatic Wire Stripping Machine For Thick Wire,Thick Wire Stripper Machine |
Product Description
Automatic Wire Stripping Machine for thick wire,Thick Wire Stripper Machine
1, Industrial touch screen, easy to operate, high stability;
2, The wheel and the wire contact area is larger, send line stability, the length of accurate;
3, the control system is highly integrated, greatly reducing the system failure rate!
4, with a large capacity memory, you can save 99 groups of parameters, easy to operate;
5, before and after the wheel wheel distance between the use of motor control, just enter the wire diameter can be easy to operate;
6, the upper and lower roller synchronous adjustment, the blade center point is always the same, processing large lines or small lines do not have to adjust the blade;
All machines are driven by the motor, do not need compressed air, versatility.
.
Specifications:
| Model | AM603-16 (Fit to thick wire) |
| Available Wire Size | 0.1 - 16mm² (AWG5- AWG30) |
| Conduit Diameter | Φ13mm |
| Cutting Length | 1 - 9999mm |
| Stripping Length | Head 0 - 50mm, Tail 0 - 50mm |
| Memory Function | Can store Max. 99 group programs |
| Max. Middle Stripping Section | 13 |
| Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Speed | 2000 - 5000pcs/hour |
| Display | LCD display with english menu |
| Drive Mode | four wheels drive |
| Blade Material | Hard tungsten steel |
| Appropriate Wire | Suit wires, such as PVC, Teflon, glass wires etc. |
| Power Supply | 220V/50Hz 110V/60Hz |
| Power Rating | 220W |

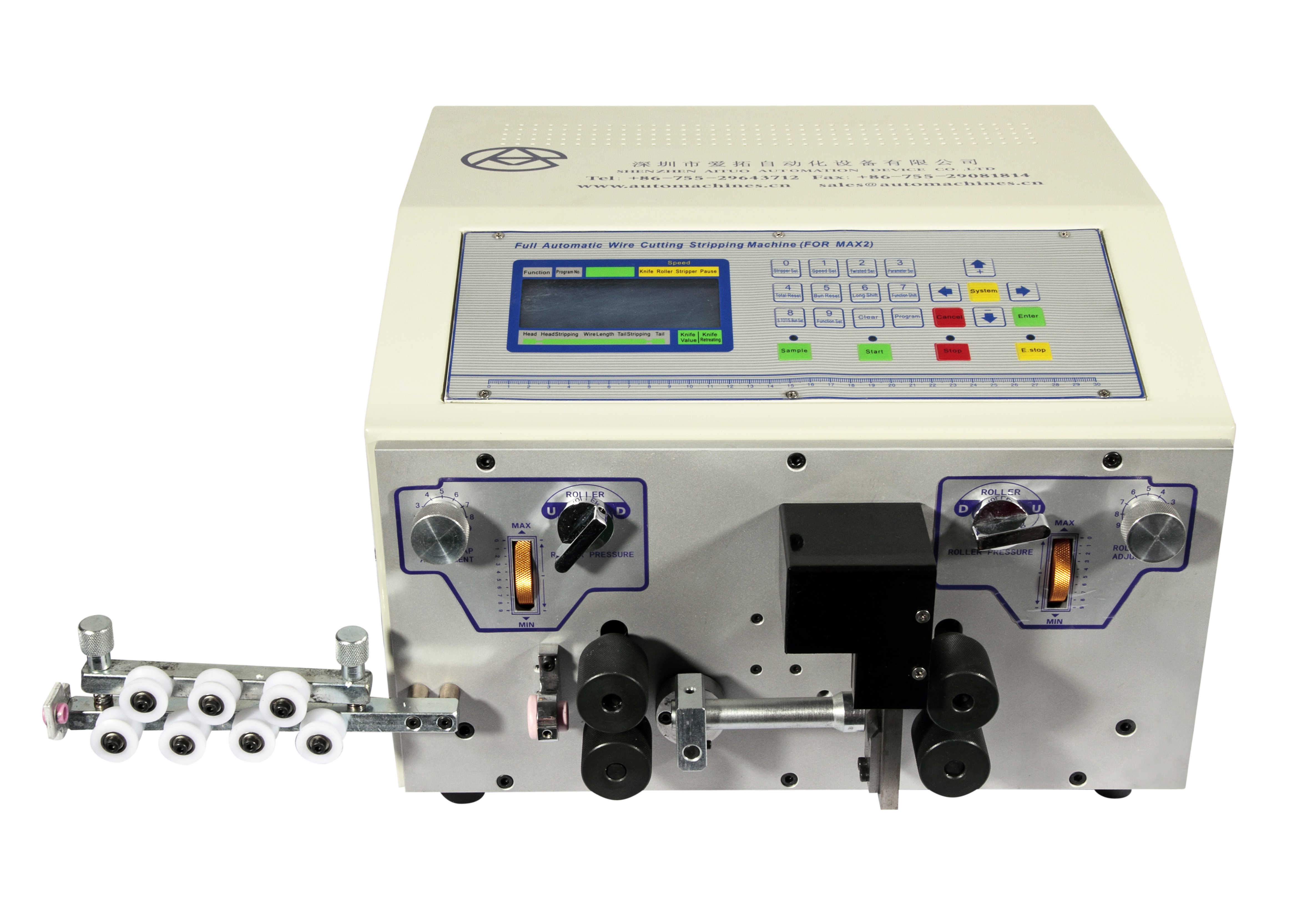

Machine Photos
O
Our service:
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help. Rising provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. Rising engineers are here for your assistance.
---OEM
Rising provides OEM services to our customers.
