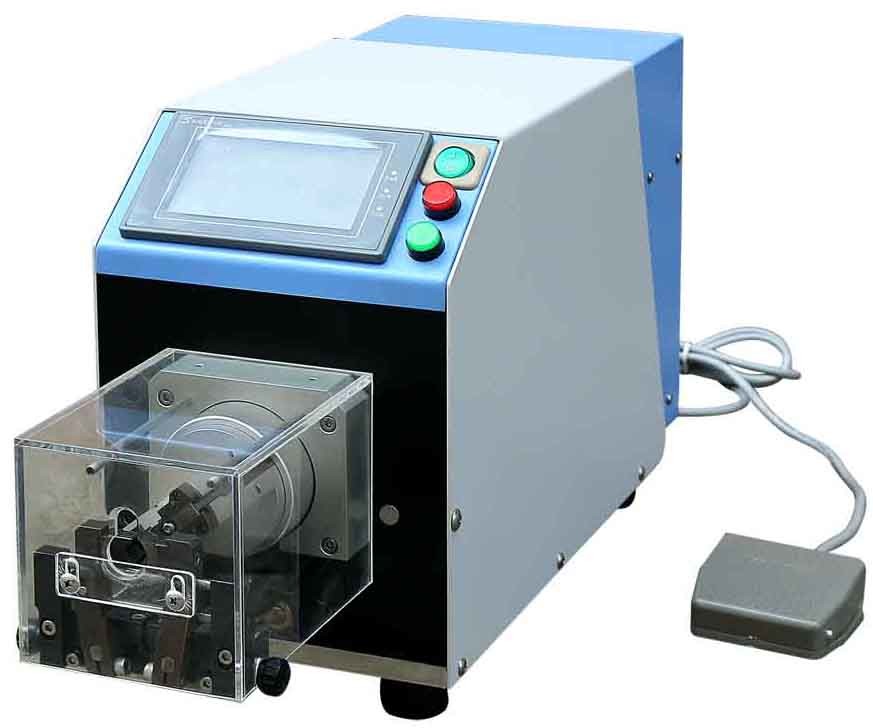

380W Automatic Wire Cutting Stripping Machine 19KG With Touch Screen Display
Place of Origin | GuangDong China |
---|---|
Brand Name | AM |
Certification | CE |
Model Number | AM609 |
Minimum Order Quantity | 1Set |
Price | Negotiation |
Packaging Details | Export standard wood package,cover wtih steel tie on its surface. |
Delivery Time | 7-15 working days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 100set per/month |
Voltage | 220V/50HZ | Power | 380W |
---|---|---|---|
Weight | 19KG | Dimensions | 525*186*278mm |
Maximum Stripping Length | 48mm | Maximum Peeling Layers | 9 Layers |
High Light | wire stripping and cutting machine,wire cutter stripping machine |
380W Automatic Wire Cutting Stripping Machine 19KG With Touch Screen Display
Features:

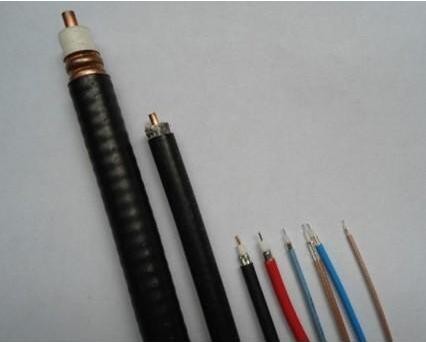

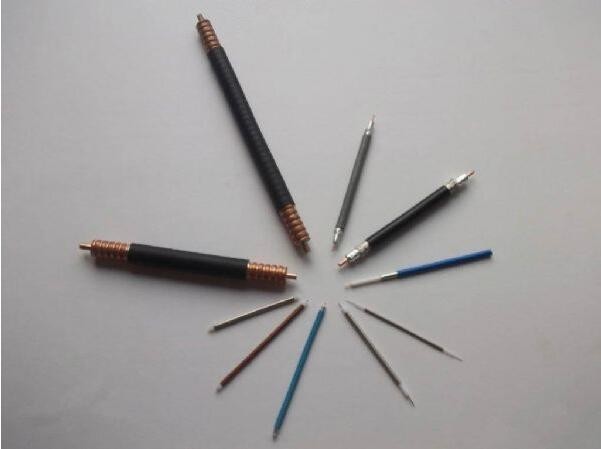

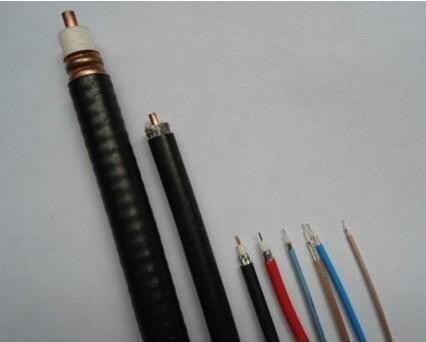

1. Coaxial cable making machine coaxial cable stripper machine for coaxial cable up to 9 layers.
2. Fully automatic stripper machine, stripping length can be adjusted
3. Powerful drive motor, minimized dimension, high quality cable stripping machine
4. Adjustable control mode, pedal control and automatic mode
5. Easy operation stripper machine
Parameters:
Device Name | AM609 Coaxial Stripping Machine (Max 9 layers) |
Max cable machining diameter | up to 6.99 mm |
Cutting depth units | 0.01mm |
Maximum stripping length | 48mm |
Maximum peeling layers | 9 layers |
Drive mode | Motor / ball screw drive (imported from Japan) |
Display | Touch Screen |
Blade | 2 pieces, tungsten steel(Made in Switzerland) |
Productivity | 500-700pcs/h(depending on the type and length) |
Power | 220V/50Hz 380W |
Dimensions | 525x186x278mm |
Weight | 19KG |
Images
