Super Thick Wire Stripping Cutting Machine 420×390×280 mm HSS Blade Material
| Place of Origin | GuangDong China |
|---|---|
| Brand Name | AM |
| Certification | CE |
| Model Number | AM603-16 |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | All machines we sell will be packed with wood box, covered with steel tie on the surface in order to avoid damaging during delivery. |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100set / per month |
Product Details
| Voltage | AC110V/220V/50/60HZ | Available Wire Size | 0.1-16mm²(AWG5#-AWG30#) |
|---|---|---|---|
| Power | 450W | Dimension | 420*390*280mm |
| Weight | 32KG | Cutting Length | 1-100000mm |
| High Light | cable cutting and stripping machine,wire cutter stripping machine |
||
Product Description

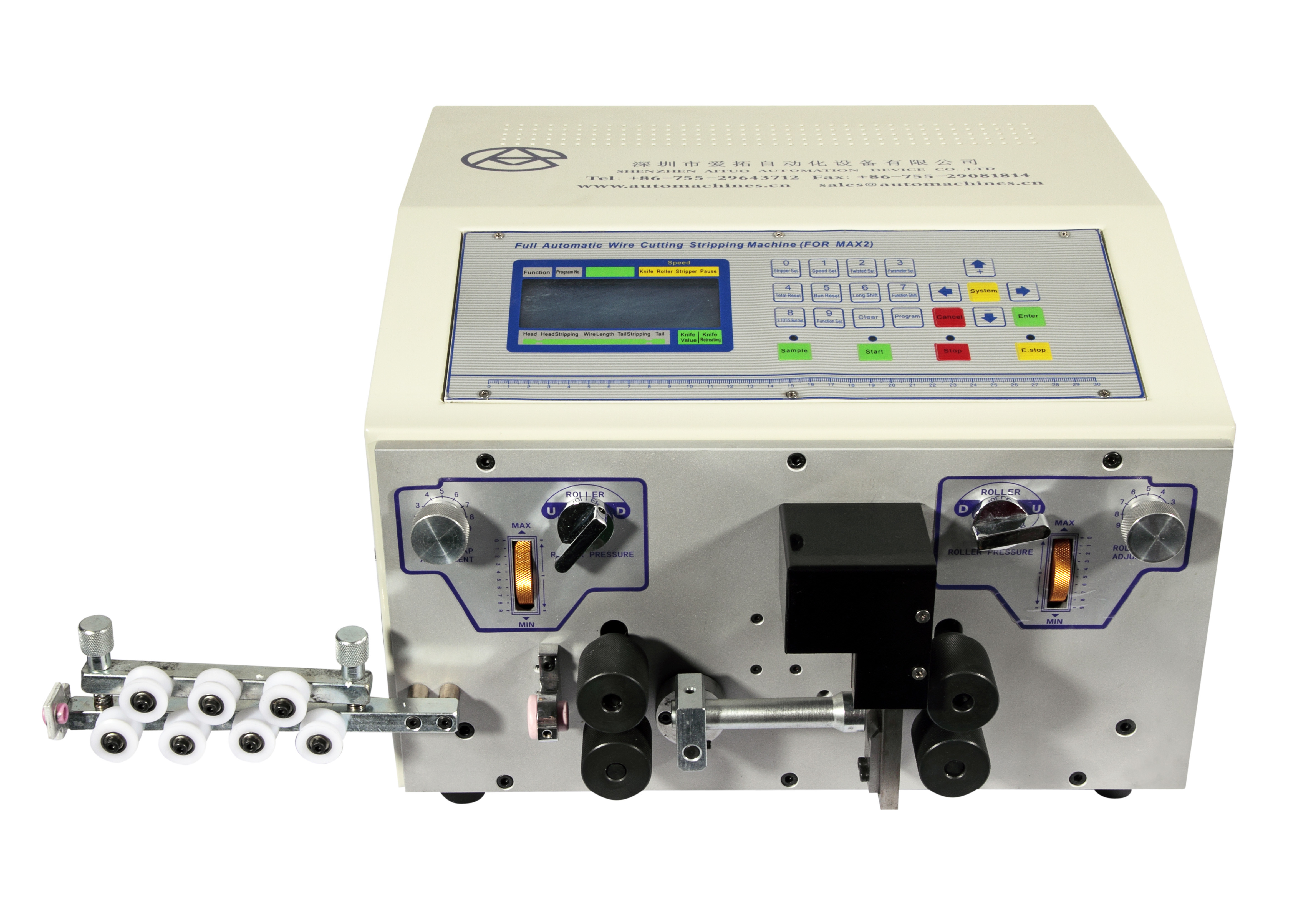

Super Thick Wire Stripping Cutting Machine 420×390×280 mm HSS Blade Material
Features:
1. Automatic wire cutting stripping machine, you just need to enter the cutting and stripping length, a wire prefeeder works, the wire will be cut and stripped automatically.
2.This stripper machine has a longer stripping length , AM603-16: Head 0-50mm, Tail 0-50mm
3. This cable making machine will be suitable for 0.1-16mm2 (AWG5# - AWG30#) PVC cables, Teflon cables, silicone cables, etc
4. AM603-16 Automatic Wire Stripping Cutting Machine ( Used for Super Thick Wre )Highly efficeint, 2000~5000pcs/hour
Specifictions:
| Available wire size | 0.1-16mm²(AWG5#-AWG30#) |
| Voltage | AC110/220V 50/60HZ |
| Display | LCD screen |
| Power | 450W |
| Dimension | 420*390*280mm |
| Weight | 32KG |
| Cutting length | 1-100000mm |
| Cutting tolerance | ±0.002 *L( Cutting length) |
| Truncation error | Can correct |
| Stripping length | Head:0-50mm Tail:0-50mm |
| Max middle stripping section | 13 stripping |
| Max conduit diameter | Ø13mm |
| Memory function | Can store MAX 99 program |
| Suitable cable | PVC/Teflon/silicone cable/glass fiber wire etc |
| Blade Material | HSS |
| Productivity | 2000-5000pcs/h (L=100mm) |
| Drive mode | Four-wheel drive |
